ROOF PANELS CORE

The thermo-insulating roof panels CORE are composite, self-supporting structural elements, consisted of two profiled sheets bonded in an insulating rigid foam core of polyurethane (PUR) or polyisocyanurate (PIR). The outer face of the panels is made of galvanized and pre-painted steel of trapezoidal shape. The inner face of the panels is made either of galvanized and pre-painted steel, slightly formed or flat, or reinforced polyester sheet.

They are mainly used for building roof claddings but they can be used for façade claddings as well.

Are conformed to the European Standard EN 14509: 2013 and are CE marked.

Ecopanel Child Image

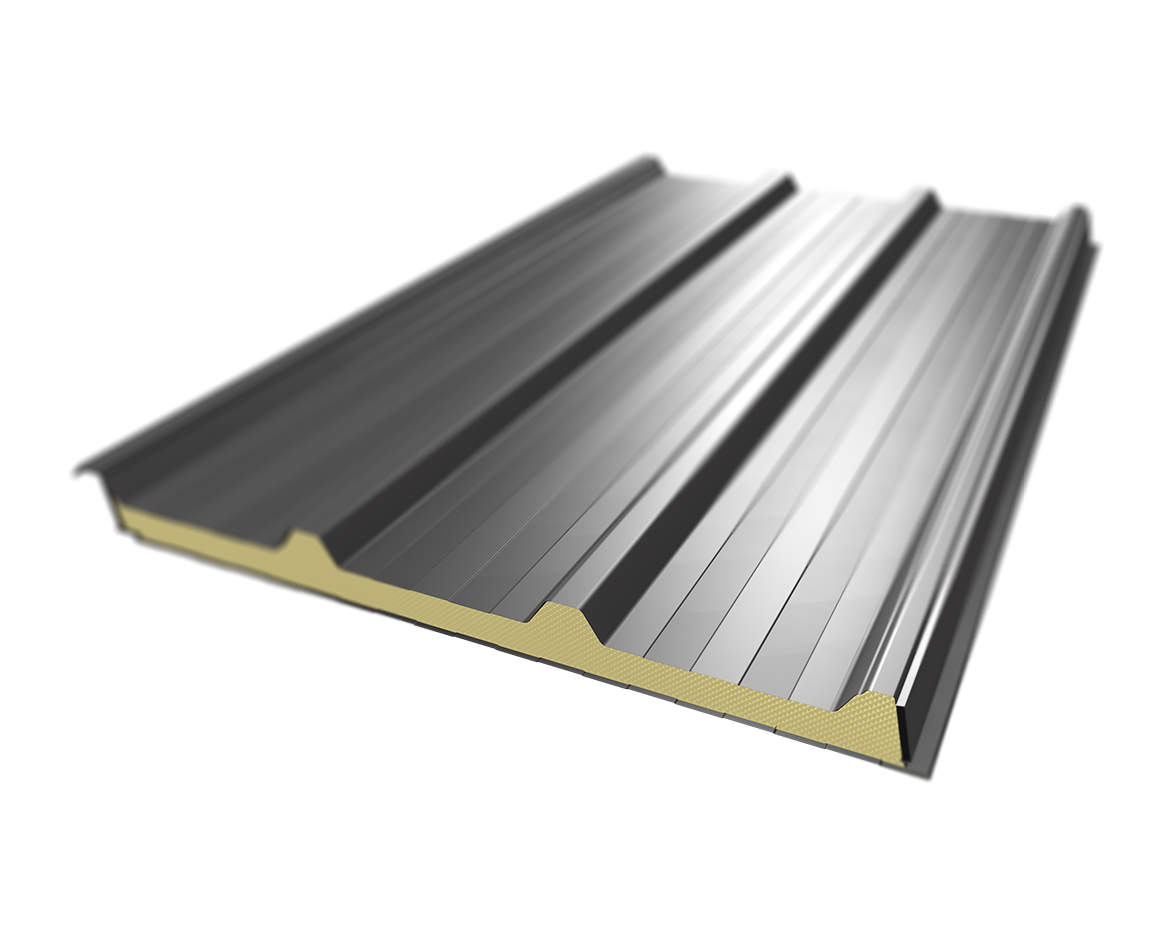

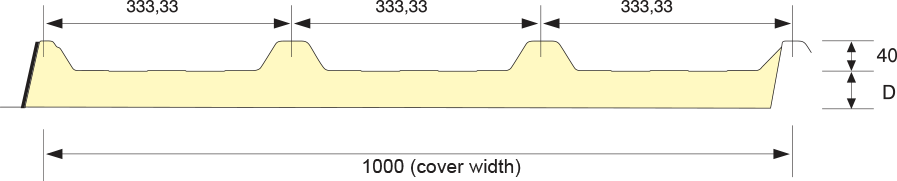

ECOPANEL RL is the premium type of CORE roof panels. The outer face is of trapezoidal shape (four ribs) and the inner face is slightly shaped “standard” type or flat. The standard steel sheet thickness for the external face is 0.45mm and for the internal face is 0.40mm. The standard top coating on both faces is Polyester 25μm in RAL scale colours. Under request are available variable steel sheet thickness, coatings and colour, according to the specific demands of the building.

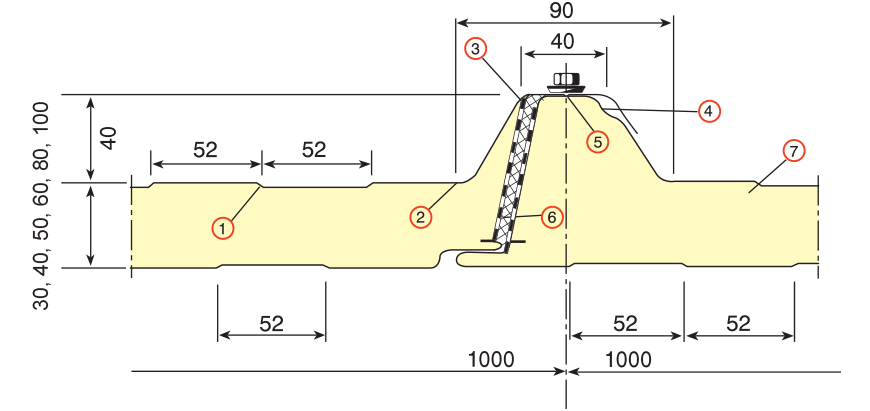

Special features

Broad valleys of the external sheet in order to make easy handling during mounting.
Large radi of bend, which is particularly advantageous for coating of only 25 Im.
Factory-fitted foam tape in the female side of overlap for a greater jointing sealability.
Groove in the longitudinal lap keeps surface water out.
Drilling grooves on the crown, which helps prevent the drill from slipping and thus, the accidental damage of the plastic coating.
Aluminium foil strip, which means less gas ascapes from the polyurethane cells thus ensuring good conductivity for longer.
Polyurethane foam core CFC Free & HCFC Free. Harmless to the environment and safe for the ozone layer.

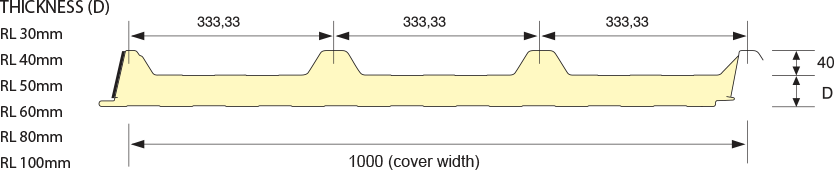

Panel Type	Outer sheet thickness (mm)	Inner sheet thickness (mm)	D (mm)	Weight (kg/m ²)	Heat transmission coefficient U (W/m ²K)	Max length (m)
RL 30	0.45	0.40	30	8.32	0.65	16.0	16.0
RL 40	0.45	0.40	40	8.70	0.50			16.0
RL 50	0.45	0.40	50	9.08	0.41				16.0
RL 60	0.45	0.40	60	9.46	0.35		16.0
RL 80	0.45	0.40	80	10.22	0.26			16.0
RL 100	0.45	0.40	100	10.98	0.21				16.0

Thermal conductivity "λ" = 0,02 W/m*K

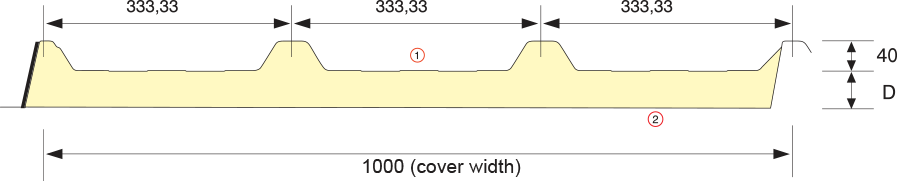

EASYPANEL RL is the economical type of CORE roof panels with the same geometric characteristics as ECOPANEL RL.

AGROPANEL RL is the type of CORE roof panels specifically designed to cover farming facilities with a heavy indoor environment

Special features

Same external shape and steel quality as ECOPANEL RL
Internal surface made of glass forced polyester (GRP) flat sheet
Ideal for farmer facilities covering

Construction details

Agropanel Accessories Image

R10 Half round two pieces ridge

Agropanel Accessories Image

1. ECOPANEL RL
4. Self-Drilling fixing screw (metal wascher-EPDM) 5,5-6,3mm x L
7. Site applied PUR foam insulation
8. Profiled filler strips
12. Flashing
19. «Z» Purlin
21. Metal frame

R11 One piece ridge

Agropanel Accessories Image

1. ECOPANEL RL
4. Self-Drilling fixing screw (metal wascher-EPDM) 5,5-6,3mm x L
7. Site applied PUR foam insulation
8. Profiled filler strips
12. Flashing
19. «Z» Purlin
21. Metal frame

R12 Ridge ventilator

Agropanel Accessories Image

1. ECOPANEL RL
4. Self-Drilling fixing screw (metal wascher-EPDM) 5,5-6,3mm x L
7. Site applied PUR foam insulation
8. Profiled filler strips
12. Flashing
13.Supporting flashing
19. «Z» Purlin
21. Metal frame
29. Bird grille

R13 Polycarbonate translucent rooflight

Agropanel Accessories Image

1. ECOPANEL RL
4. Self-Drilling fixing screw (metal wascher-EPDM) 5,5-6,3mm x L
8. Profiled filler strips
12. Flashing
19. «Z» Purlin
21. Metal frame
24. Polycarbonate translucent rooflight

R20 External gutter

Agropanel Accessories Image

1. ECOPANEL RL
2. ECOPANEL WL
4. Self-Drilling fixing screw (metal wascher-EPDM) 5,5-6,3mm x L
5. Self-Drilling stitching screw (metal wascher-EPDM) 5,5mm x L
10. Self-Adhesive sealing strip
13. Supporting flashing
14. Gutter
19. «Z» Purlin
21. Metal frame

R21 ΕBoundary wall gutter

Agropanel Accessories Image

1. ECOPANEL RL
2. ECOPANEL WL
4. Self-Drilling fixing screw (metal wascher-EPDM) 5,5-6,3mm x L
6. Stitching screw or rivet
10. Self-Adhesive sealing strip
12. Flashing
14. Gutter
15. Supportive angle
19. «Z» Purlin
20. «C» Rail
21. Metal frame

R22 Boundary wall insulated gutter

Agropanel Accessories Image

1. ECOPANEL RL
2. ECOPANEL WL
4. Self-Drilling fixing screw (metal wascher-EPDM) 5,5-6,3mm x L
6. Stitching screw or rivet
10. Self-Adhesive sealing strip
12. Flashing
14. Insulated gutter
15. Supportive angle
19. «Z» Purlin
20. «C» Rail
21. Metal frame

R23 Valley gutter

Agropanel Accessories Image

1. ECOPANEL RL
4. Self-Drilling fixing screw (metal wascher-EPDM) 5,5-6,3mm x L
10. Self-Adhesive sealing strip
14. Gutter
19. «Z» Purlin
21. Metal frame

σ

R24 Valley insulated gutter

Agropanel Accessories Image

1. ECOPANEL RL
4. Self-Drilling fixing screw (metal wascher-EPDM) 5,5-6,3mm x L
10. Self-Adhesive sealing strip
14. Insulated gutter
19. «Z» Purlin
21. Metal frame

R25 Eave parapet gutter

Agropanel Accessories Image

1. ECOPANEL RL
2. ECOPANEL WL
4. Self-Drilling fixing screw (metal wascher-EPDM) 5,5-6,3mm x L
6. Stitching screw or rivet
9. Thermal insulation
10. Self-Adhesive sealing strip
12. Flashing
14. Gutter
19. «Z» Purlin
20. «C» Rail
21. Metal frame

R26 Eave parapet insulated gutter

Agropanel Accessories Image

1. ECOPANEL RL
2. ECOPANEL WL
4. Self-Drilling fixing screw (metal wascher-EPDM) 5,5-6,3mm x L
6. Stitching screw or rivet
9. Thermal insulation
10. Self-Adhesive sealing strip
12. Flashing
13. Supporting flashing
14. Insulated gutter
15. Supporting angle
19. «Z» Purlin
20. «C» Rail
21. Metal frame

R27 Curved eave without gutter

Agropanel Accessories Image

1. ECOPANEL RL
4. Self-Drilling fixing screw (metal wascher-EPDM) 5,5-6,3mm x L
5. Self-Drilling stitching screw (metal wascher-EPDM) 5,5mm x L
9. Thermal insulation
10. Self-Adhesive sealing strip
15. Supporting angle
16. «Z» profile
17. Curved outer trapezoidal sheet (crimped)
18. Flat sheet curved (Self-curving)
19. «Z» Purlin
20. «C» Rail
21. Metal frame

R28 Curved eave insulated gutter

Agropanel Accessories Image

1. ECOPANEL RL
4. Self-Drilling fixing screw (metal wascher-EPDM) 5,5-6,3mm x L
5. Self-Drilling stitching screw (metal wascher-EPDM) 5,5mm x L
6. Stitching screw or rivet
8. Profiled filler strips
9. Thermal insulation
10. Self-Adhesive sealing strip
12. Flashing
14. Insulated gutter
16. «Z» profile
17. Curved outer trapezoidal sheet (crimped)
18. Flat sheet curved (Self-curving)
19. «Z» Purlin
21. Metal frame

R29 Curved mono ridge

Agropanel Accessories Image

1. ECOPANEL RL
4. Self-Drilling fixing screw (metal wascher-EPDM) 5,5-6,3mm x L
5. Self-Drilling stitching screw (metal wascher-EPDM) 5,5mm x L
9. Thermal insulation
10. Self-Adhesive sealing strip
17. Curved outer trapezoidal sheet (crimped)
18. Flat sheet curved (Self-curving)
19. «Z» Purlin
20. «C» Rail
21. Metal frame

R40 Verge wall cladding στέγης

Agropanel Accessories Image

1. ECOPANEL RL
2. ECOPANEL WL
4. Self-Drilling fixing screw (metal wascher-EPDM) 5,5-6,3mm x L
5. Self-Drilling stitching screw (metal wascher-EPDM) 5,5mm x L
6. Stitching screw or rivet
9. Thermal insulation
11. Butyl rubber sealant
12. Flashing
15. Supporting angle
16. «Z» profile
19. «Z» Purlin
20. «C» Rail
21. Metal frame

R41 Verge wall cladding (start of ecopanel)

Agropanel Accessories Image

1. ECOPANEL RL
2. ECOPANEL WL
4. Self-Drilling fixing screw (metal wascher-EPDM) 5,5-6,3mm x L
6. Stitching screw or rivet
9. Thermal insulation
12. Flashing
15. Supporting angle
19. «Z» Purlin
20. «C» Rail
21. Metal frame

R42 Verge wall cladding (end of ecopanel)

Agropanel Accessories Image

1. ECOPANEL RL
2. ECOPANEL WL
4. Self-Drilling fixing screw (metal wascher-EPDM) 5,5-6,3mm x L
6. Stitching screw or rivet
9. Thermal insulation
12. Flashing
15. Supporting angle
19. «Z» Purlin
20. «C» Rail
21. Metal frame

Agropanel Accessories Image

1. ECOPANEL RL
2. ECOPANEL WL
4. Self-Drilling fixing screw (metal wascher-EPDM) 5,5-6,3mm x L
6. Stitching screw or rivet
8. Profiled filler strips
9. Thermal insulation
12. Flashing
19. «Z» Purlin
20. «C» Rail
21. Metal frame

R44 Verge parapet cladding

Agropanel Accessories Image

1. ECOPANEL RL
2. ECOPANEL WL
4. Self-Drilling fixing screw (metal wascher-EPDM) 5,5-6,3mm x L
5. Self-Drilling stitching screw (metal wascher-EPDM) 5,5mm x L
6. Stitching screw or rivet
11. Butyl rubber sealant
12. Flashing
15. Supporting angle
16. «Z» profile
19. «Z» Purlin
21. Metal frame

R45 Verge parapet cladding with sub – construction

Agropanel Accessories Image

1. ECOPANEL RL
2. ECOPANEL WL
4. Self-Drilling fixing screw (metal wascher-EPDM) 5,5-6,3mm x L
5. Self-Drilling stitching screw (metal wascher-EPDM) 5,5mm x L
6. Stitching screw or rivet
9. Thermal insulation
11. Butyl rubber sealant
12. Flashing
16. «Z» Profile
19. «Z» Purlin
20. «C» Rail

R46 Mono ridge parapet cladding with sub-construction

Agropanel Accessories Image

1. ECOPANEL RL
2. ECOPANEL WL
4. Self-Drilling fixing screw (metal wascher-EPDM) 5,5-6,3mm x L
6. Stitching screw or rivet
8. Profiled filler strips
9. Thermal insulation
12. Flashing
19. «Z» Purlin
20. «C» Rail
21. Metal frame

R60 GRP rooflight panel (width section)

Agropanel Accessories Image

1. ECOPANEL RL
4. Self-Drilling fixing screw (metal wascher-EPDM) 5,5-6,3mm x L
8. Profiled filler strips
19. «Z» Purlin
22. Aluminium cap
23. GRP rooflight panel

R61 GRP rooflight panel (Length section)

Agropanel Accessories Image

1. ECOPANEL RL
4. Self-Drilling fixing screw (metal wascher-EPDM) 5,5-6,3mm x L
5. Self-Drilling stitching screw (metal wascher-EPDM) 5,5mm x L
6. Stitching screw or rivet
8. Profiled filler strips
10. Self-Adhesive sealing strip
15. Supporting angle
19. «Z» Purlin
21. Metal frame
22. Aluminium cap
23. GRP rooflight panel

R62 Skylight opening (length section bottom)

Agropanel Accessories Image

1. ECOPANEL RL
4. Self-Drilling fixing screw (metal wascher-EPDM) 5,5-6,3mm x L
5. Self-Drilling stitching screw (metal wascher-EPDM) 5,5mm x L
6. Stitching screw or rivet
8. Profiled filler strips
9. Thermal insulation
12. Flashing
13. Supporting flashing
19. «Z» Purlin
21. Metal frame
25. Skylight – rooflight ventilator

R63 Skylight opening (length section upper)

Agropanel Accessories Image

1. ECOPANEL RL
4. Self-Drilling fixing screw (metal wascher-EPDM) 5,5-6,3mm x L
6. Stitching screw or rivet
9. Thermal insulation
12. Flashing
13. Supporting flashing
19. «Z» Purlin
21. Metal frame
25. Skylight – rooflight ventilator

R64 Skylight opening (width section)

Agropanel Accessories Image

1. ECOPANEL RL
4. Self-Drilling fixing screw (metal wascher-EPDM) 5,5-6,3mm x L
5. Self-Drilling stitching screw (metal wascher-EPDM) 5,5mm x L
9. Thermal insulation
11. Butyl rubber sealant
13. Supporting flashing
16. «Z» Profile
19. «Z» Purlin
25. Skylight – rooflight ventilator
