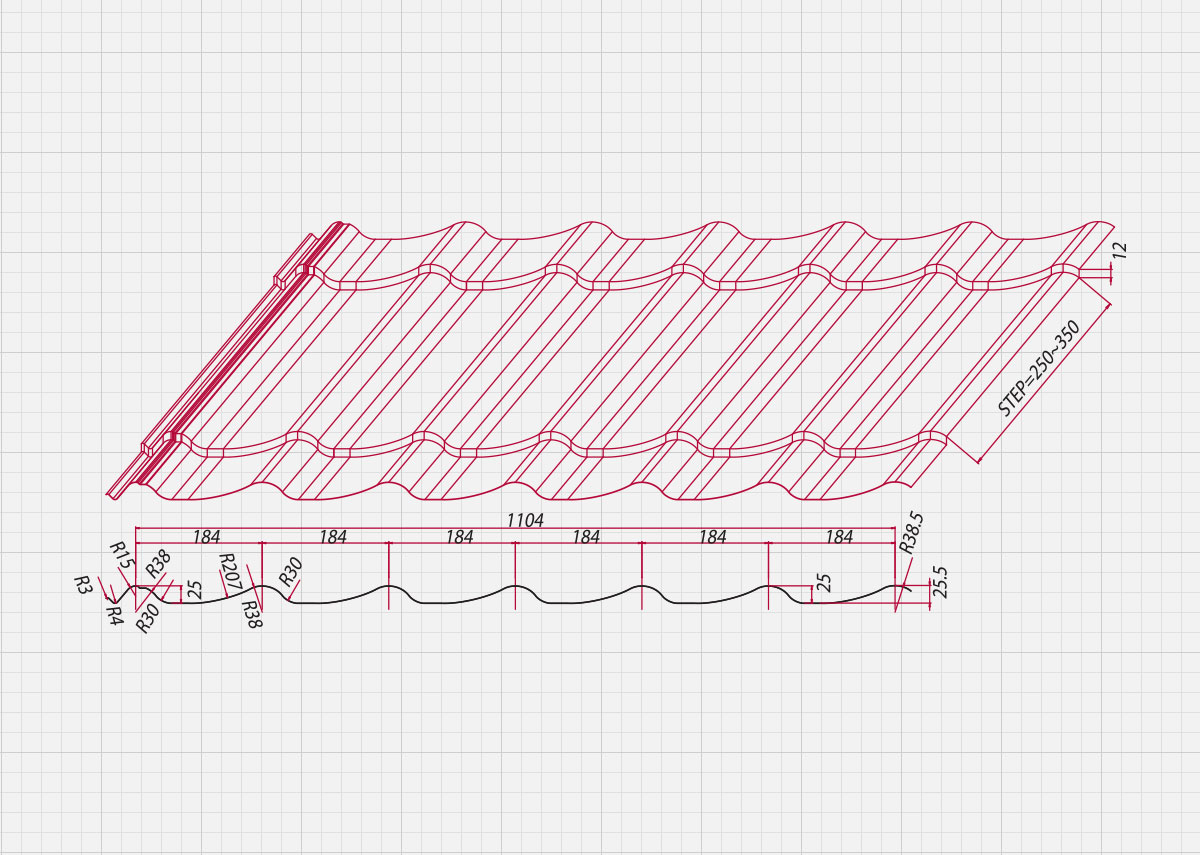

Coil thickness: 0,4mm ~ 0,8mm
Covering width: 1104 ± 5,0mm
Depth of wave: 25mm ± 1,0mm
Pitch: 184 ± 2mm
Step: 250mm ~ 350mm
Minimum installation slope: 8°
The vast variety of building covering products is now intergrated with the new ECOTILE series. It consists of profiles for wide openings which present a high quality finishing and also an attractive design. The overall result is a look identical to the classic tiles. Because of its light weight per square meter, it may be safely placed even on an existing roof.
- The product is designed to bear weather conditions such as: ice, rain, heat, storm, hail is 100% water proof due to its specially designed groove on every sheet's edge.
- It can be placed easily and quickly.
- It can be placed even on the vertical axis.
- It reduces the load of a building's shell. It is ideal for roofs placed for waterproofing and insulation purposes on existing lofts.
- It does not maintenance or cleaning, it prevents mold from being created and sheets are self cleaning.
- Product presents extended lifetime because of the high quality polyester coating of the profile.
- It may be delivered in standardized length with standard step distance of 350mm in GREEK RED color.
- Finally, it may be delivered according to the customer's order in a special length and step distance and additionally in any RAL coloration the customer may wish.
